RCC Dam Climbing Formwork , Safety Climbing System With Heavy Duty Climbing Brackets

Name: RCC Dam Climbing Formwork Safety Climbing System With Heavy Duty Climbing Brackets
Brand: Forpro
Price: 1 USD

Brand Name : Forpro

Model Number : Dam Construction Climbing formwork system

Certification : ISO and CE

Place of Origin : shanghai

MOQ : 100 pcs

Payment Terms : L/C, T/T

Supply Ability : 10000 Pcs / year

Delivery Time : 30-45 work days

Packaging Details : Pallet

Material : Timber Beam Panel,,steel panel,Q235 Steel, bended profile

Color : Customized color Blue lacquer, brown, light yellow

Size : Pull Force 220 KN

Application : RCC dam,Shiplock, bridge abutment,Massive concrete, Dam, Power station,

Product name : Retracted Dam climbing formwork DF220 system

Type : Wall Formwork, Steel formwork,Column formwork,Climbing formwork

Contact Now

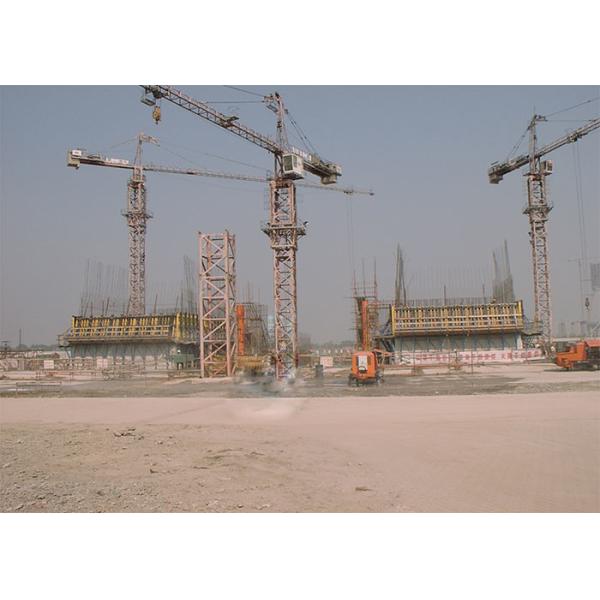

Massive Concrete Project To Be Built With Dam Climbing Formwork DF220

Description

For RCC dam projects and other massive concrete projects like dam, abutment, coffer dam, shiplock and power station house projects, the formwork could only be erected from one side,and through-in tie rod could not be applied to fix opposite formwork, all concrete pressure will be taken by climbing brackets. As a high load bearing capacity and safety climbing formwork, Dam formwork DF220 is the best option to applied in this kind of project. 3 levels of platforms provide orient work space for formwork operation, concrete pouring and concrete surface repairing. The whole system is anchored in the stucture during the whole working process, the modular elements can be adjusted to fit any angle of wall inclination within 30⁰.

Conponents
• Large size steel panel or steel frame panel

• Heavy duty climbing brackets DF220

• Main platform, top plstform and suspension platform

• Climbing cone, high strength screw and snake-like anchor

Features
• Standard ouring height is 3m to 4m

• Max. permissable concrete pressure is 40kN/m2

• Min.concrete strength requirement in anchoring point is 10MPa

• Max. permitted pull force is 220kN per bracket for embedded tie rod

• Main platform width is 1.85m

Steel Panel Dimension Sheet

Product Series	Product Dimension (WxL)
3.0m	3.0x2.1	3.0x1.5	3.0x1.2	3.0x0.9	3.0x0.6	3.0x0.3
2.4m	2.4x2.1	2.4x1.5	2.4x1.2	2.4x0.9	2.4x0.6	2.4x0.3

Producing department

Applications Field

RCC Dam Climbing Formwork , Safety Climbing System With Heavy Duty Climbing Brackets

Delivery process
