Outline

ForProTimber beam is a standard component of formwork system,it is widely applied in projects like housing, civil engineering, transportation, hydropower and LNG etc. high quality raw material is selected to manufacture our product.

Product dimension

Beam height: 200mm

Flange width: 80mm

Flange thickness: 40mm

Web thickness: 27mm

Wood material

Flange: High quality pine or spruce

Web: Birch or poplar or larch plywood

Surface

Treated by WBP glue and coated by antiseptic and water proof painting, the product has good character of weather and water proof.

Technical data

Dimension tolerance

Number of cycles

The possible number of use cycles depends on a multiplicity of external influences acting on the timber beam and correct application. A non-binding guide value is 40~60 cycles under optimum condition and very good treatment to the timber beam by the user.

Manufacture standard

GB/T 31265 WoodI beam for concrete form

EN13377 Prefabricated timber formwork beams-requirements, classification and assessment.

Special statement

Max.Timber beam length is <6m,

custom-madelonger length is possible.

Applications

tie rod construction formwork

concrete formwork brackets

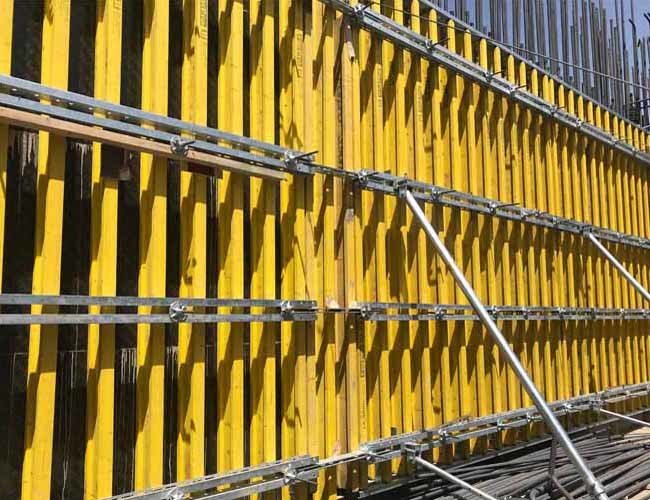

Professional Concrete Formwork Accessories Pouring Material H20 Timber Beam Images
